Bed size: 190 × 75 cm

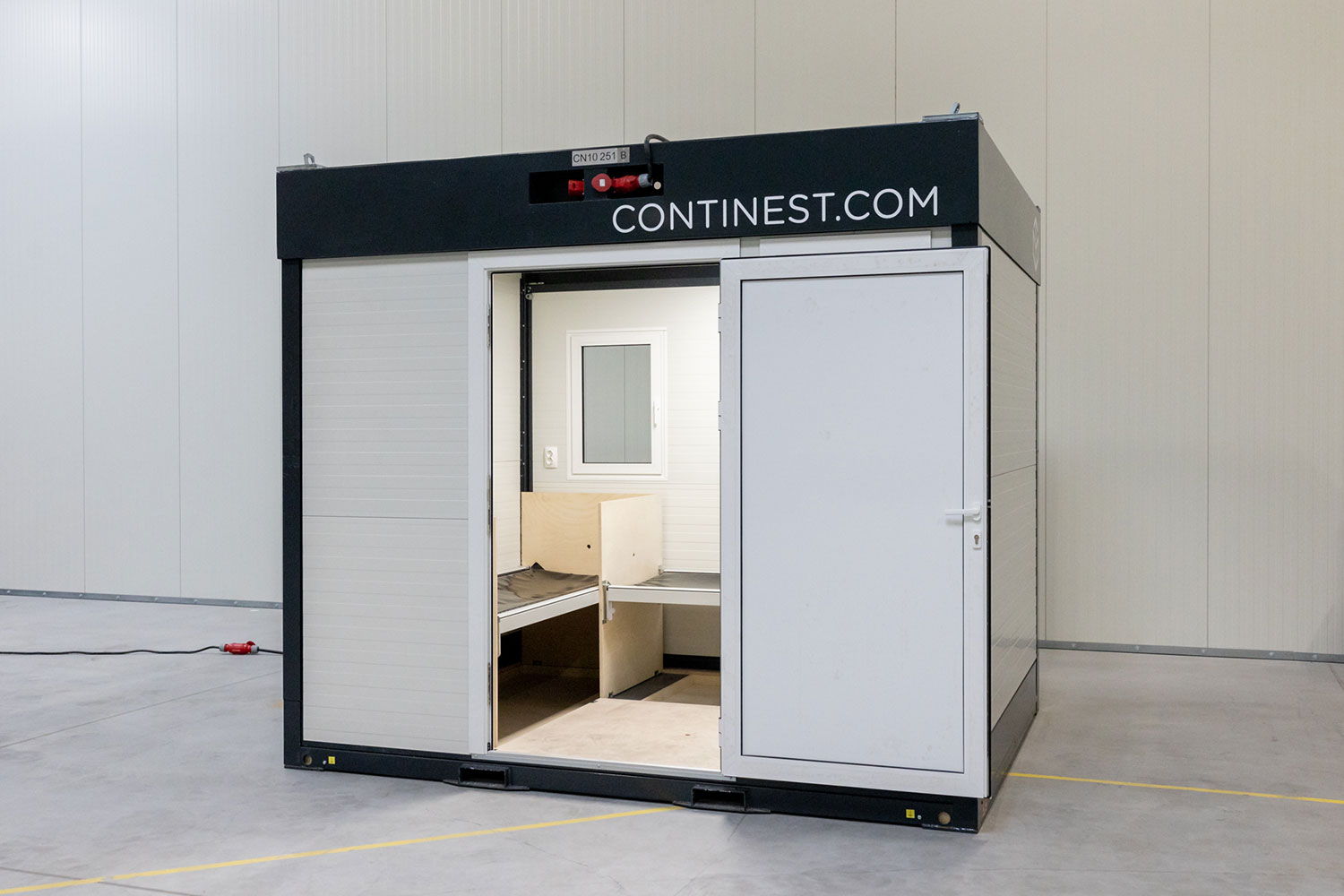

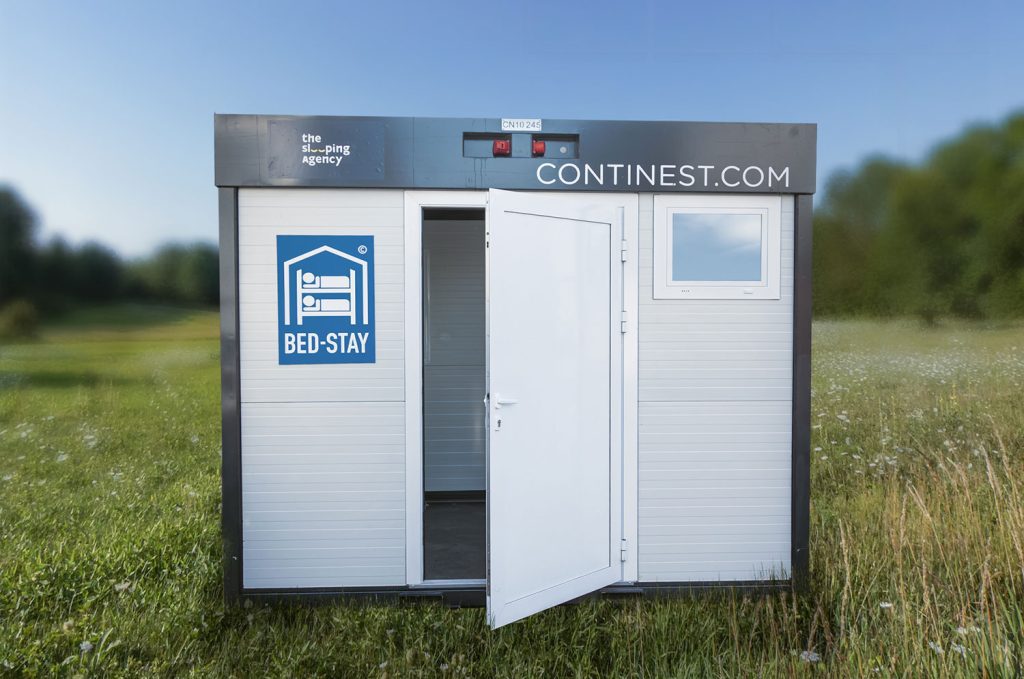

CN10 Bed-Stay
Rapid, reliable sleeping solution
Quick and easy to set-up, yet refined, CN10 Bed-Stay is the perfect option anywhere there is a need for temporary accommodation – military field exercises, emergency humanitarian or disaster situations.

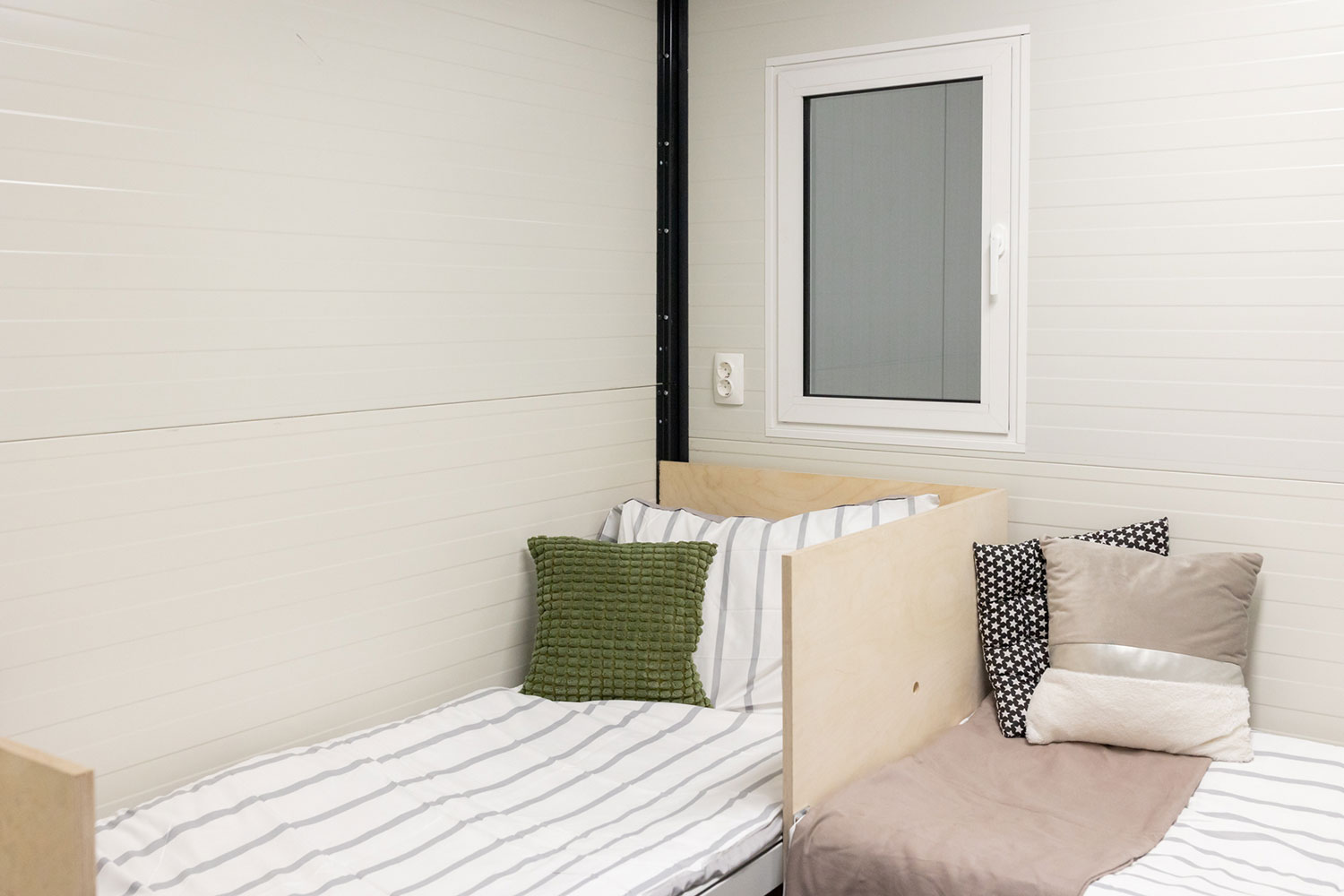

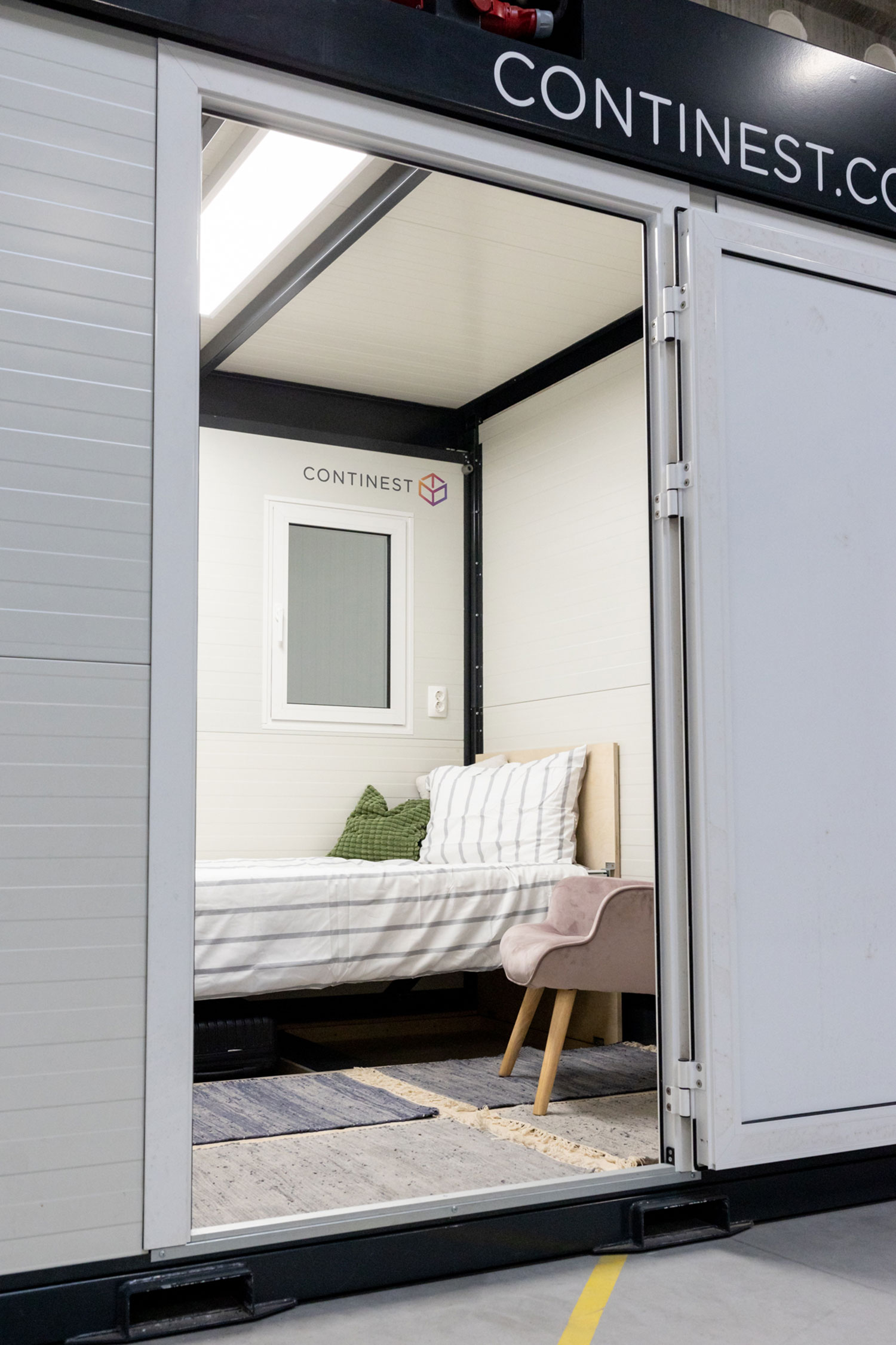

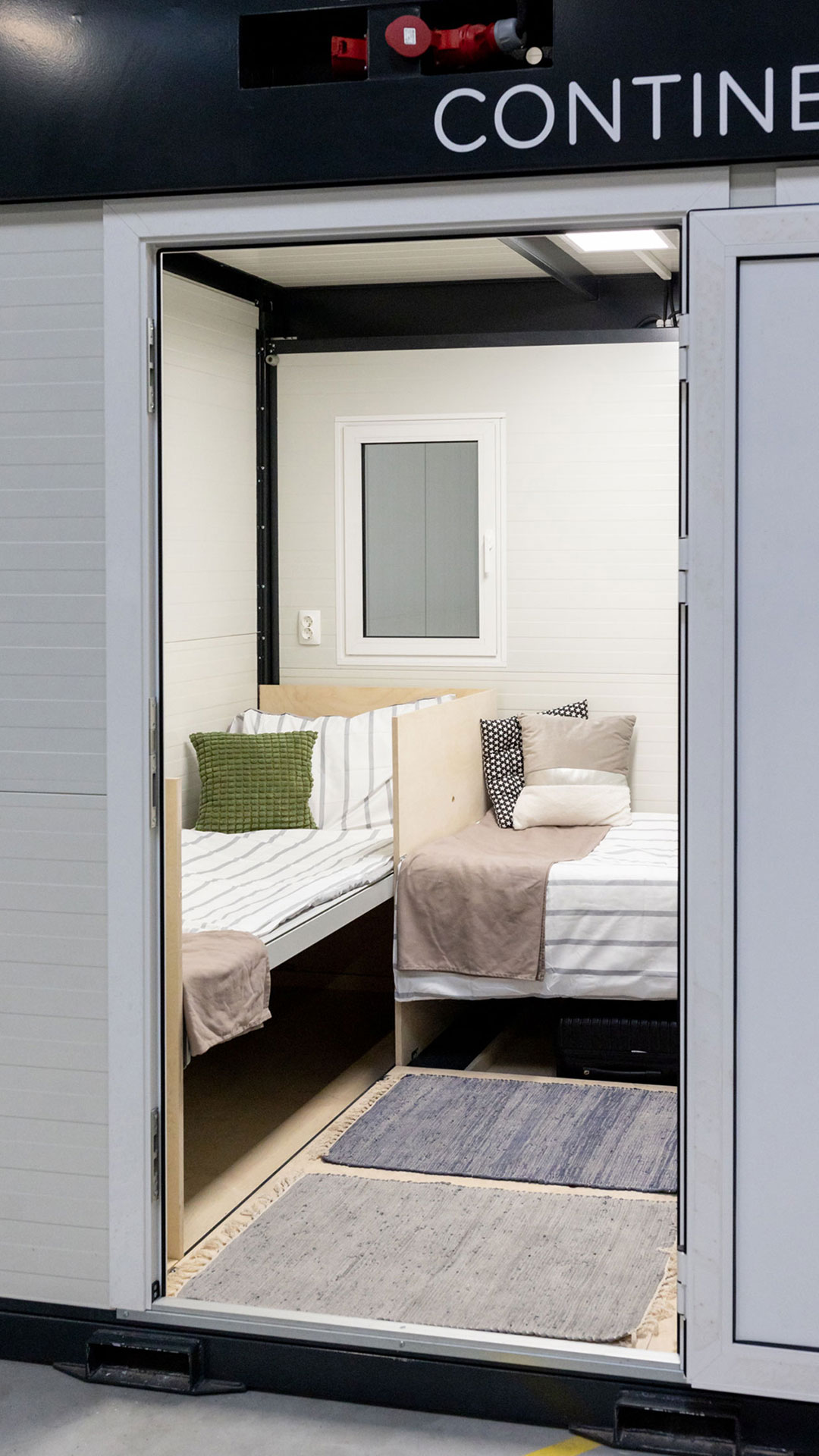

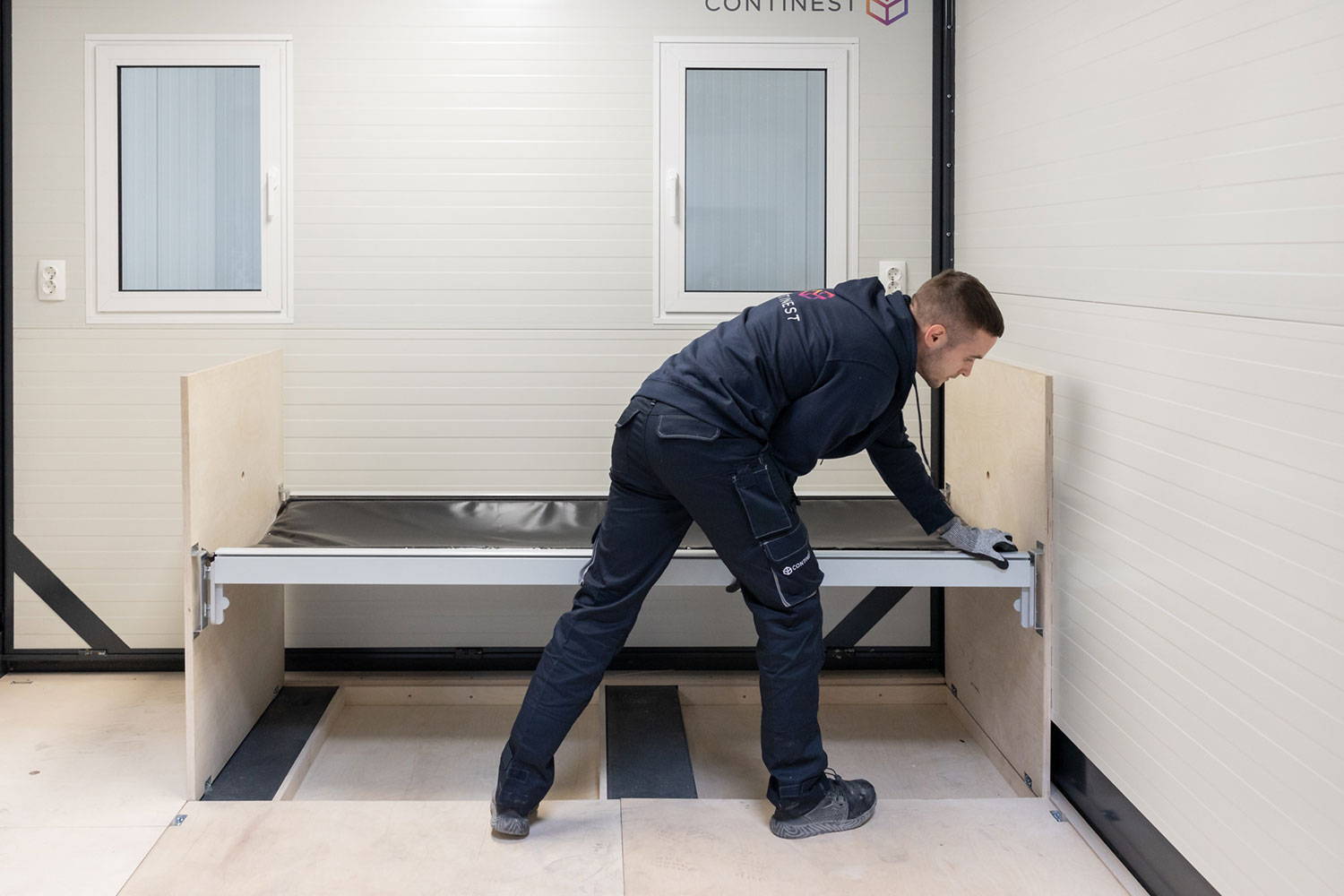

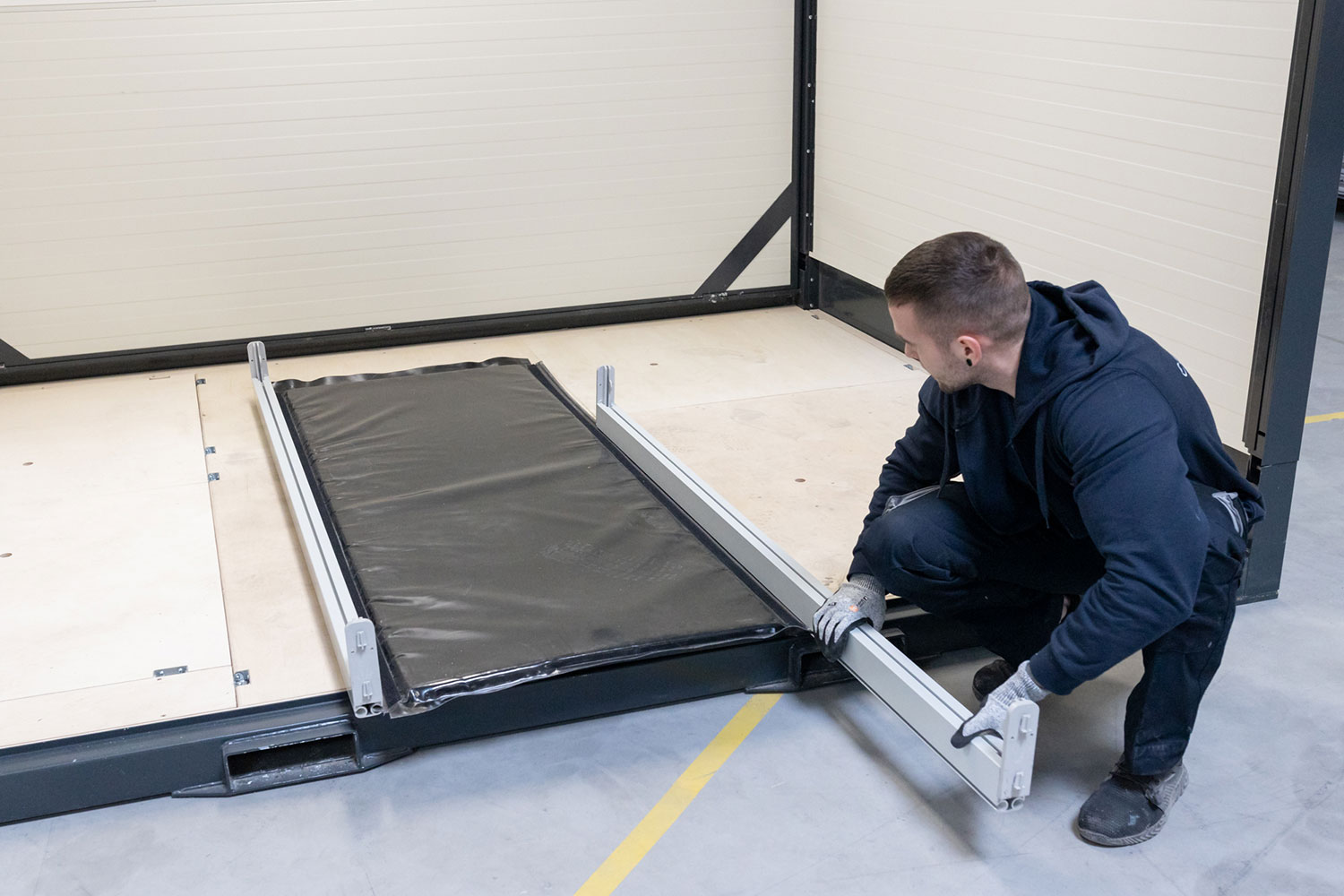

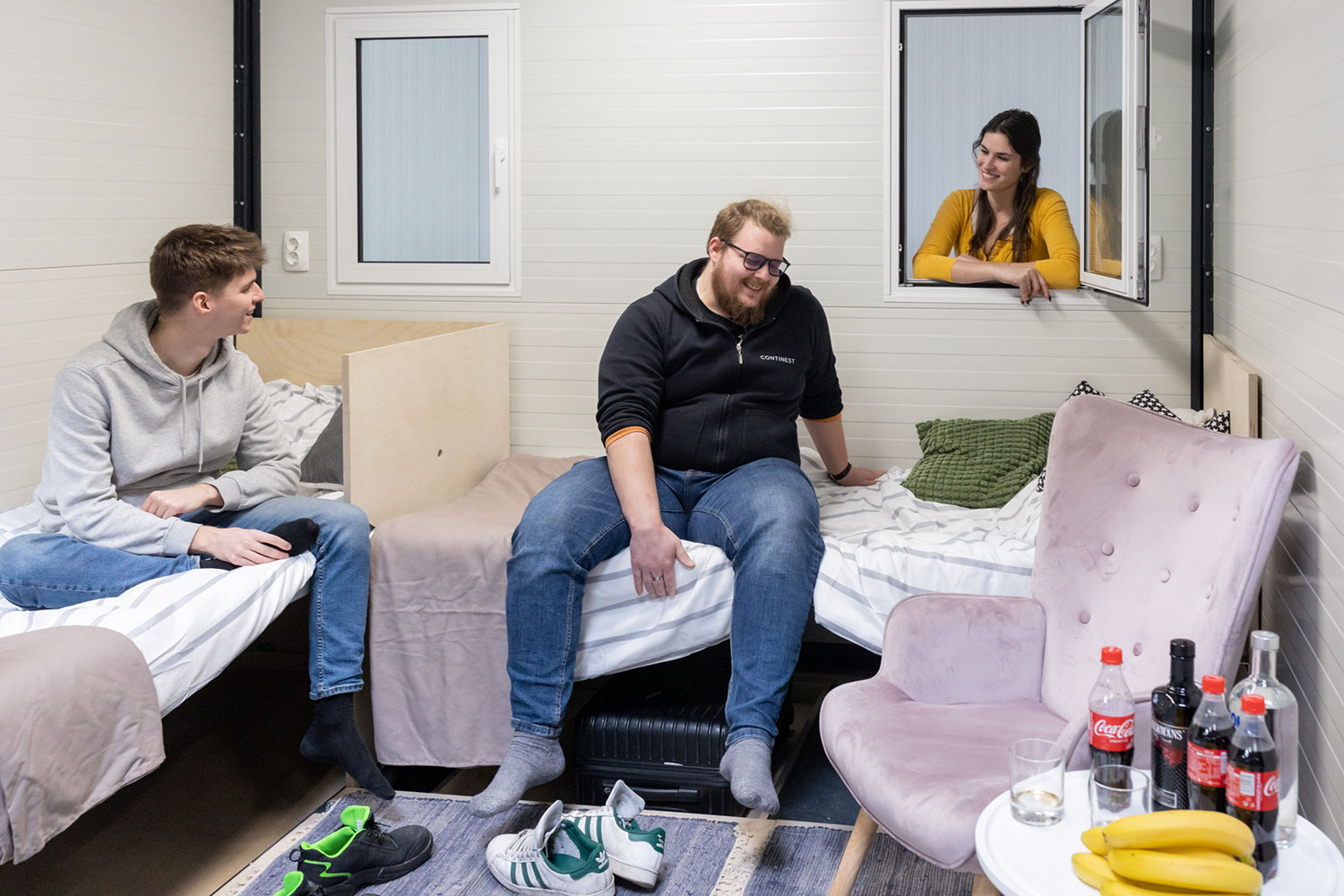

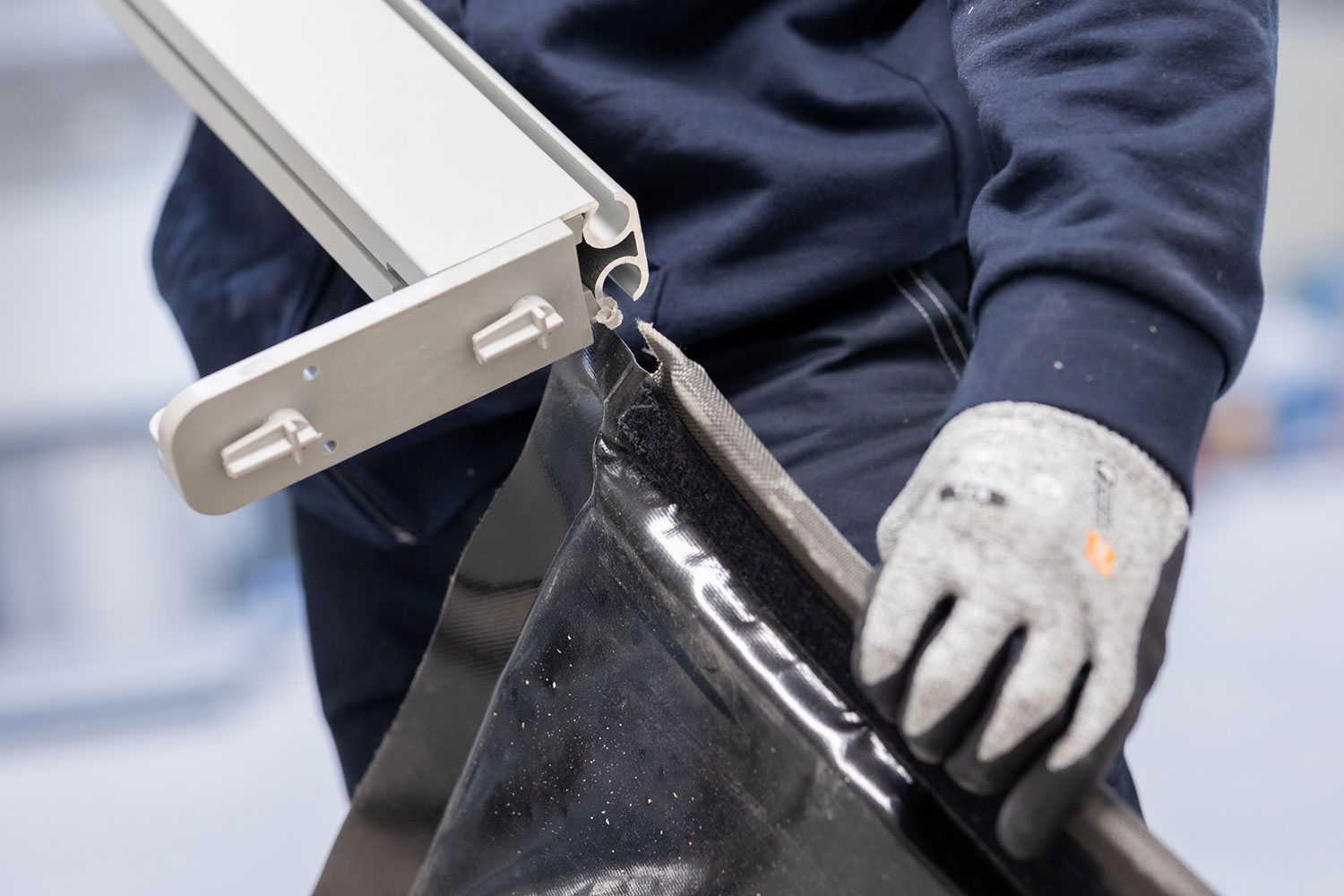

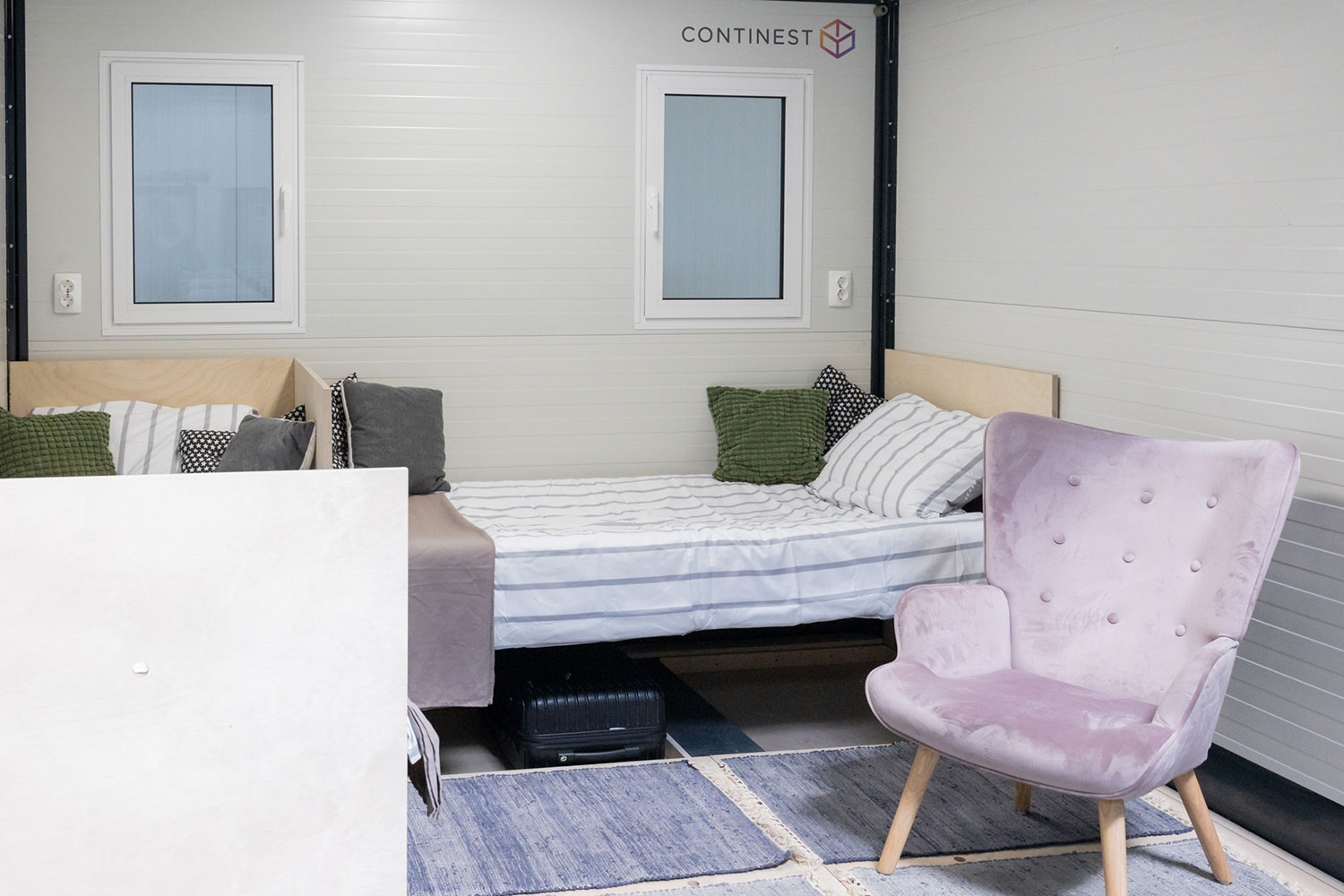

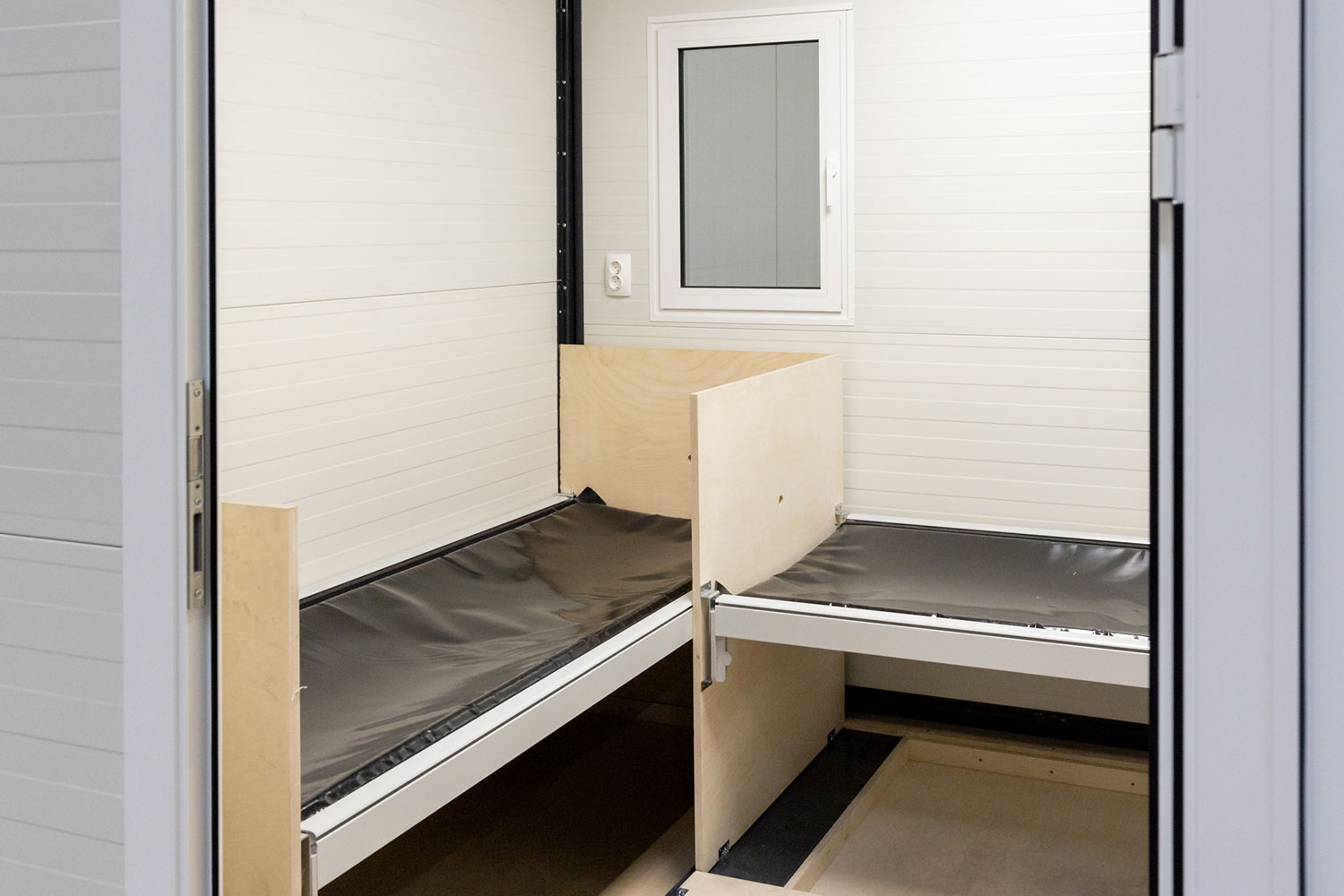

The CN10 Bed-Stay is based on the standard foldable CN10 standard container, in which 2 bed frame systems with mattresses are installed into the floor, so comfortable sleeping accommodations for 2 people can be easily created in just a few minutes.
STACKABLE
10 units can be loaded
and stacked on a standard trailer
10 ft LONG UNIT
CN10 Bed-Stay dimensions
Imperial
Metric
| DIMENSIONS | WIDTH | HEIGHT | LENGTH |
|---|---|---|---|
| BED SIZE | 2' 5.5" | 1' 9.1" | 6' 2.8" |
| STORAGE SPACE under the beds | 2' 9.9" | 1' 6.1" | 6' 6.3" |
| EXTERIOR | 8' 0" | 8' 6" | 9' 8" |
| Interior | 7' 5" | 7' 11.6" | 7' 11" |
| FOLDED | 8' 0" | 1' 6" | 9' 8" |
| DOOR | 3' 9" | 6' 9.5" | |
| AC WINDOW | 2' 1.6" | 1' 8.5" | |
| SIMPLE TILT & OPEN WINDOW | 1' 10" | 2' 7.7" |
WEIGHT | 2359 lbs |
|---|---|
| DIMENSIONS | WIDTH | HEIGHT | LENGTH |
|---|---|---|---|
| BED SIZE | 750 mm | 535 mm | 1900 mm |
| STORAGE SPACE under the beds | 860 mm | 460 mm | 1990 mm |
| EXTERIOR | 2440 mm | 2624 mm | 3000 mm |
| Interior | 2260 mm | 2428 mm | 2420 mm |
| FOLDED | 2440 mm | 495 mm | 3000 mm |
| DOOR | 1145 mm | 2070 mm | |
| AC WINDOW | 620 mm | 520 mm | |
| SIMPLE TILT & OPEN WINDOW | 555 mm | 805 mm |
WEIGHT | 1070 kg |
|---|---|
*Can be upgraded upon request.
